Applications
Grease, fuels, LP and Natural gas (available on special order), refrigeration, instrumentation and hydraulic systems., these fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.
Features
- Vibration resistance - Fair resistance to vibration and pipe movement depending upon conditions.
- Advantages - Fewer leaks in the system, Large range of sizes and configurations (extruded/barstocked, hex forged, nickel plated/round forged).
- Conformance - Meets functional requirements of the SAE J530 (Automotive Pipe Fittings), SAE J531 (Drain Plugs) and of ASA, ASME.
Specification
- Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
- Working Pressure: 1200 PSI Maximum based on size always consult tubing/pipe specifications.
|
Assembly Instructions
|
|
1. Tighten approximately 2-1/2 turns past hand tight.
2. Fittings with Everseal tighten two turns past hand tight. Brittle materials require special cautions
3. Thread Sizes: M5, UNF 10, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4
4. Thread Types: NPT, NPSF, NPTF, Metric, BSPT, BSPP, UNF |
|
DOT Brass Pipe Fittings, Brass Threaded Fittings, Brass Hose Fittings |

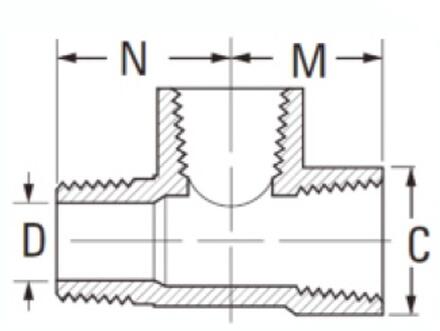

Male Run Tee |
Male Run Tee Brass Pipe Fittings |
|
|
|
NPSF Female Thread - NPT Male Thread |
MODEL |
Female Thread |
Male Thread |
Description |
DPMST 1/8NPSF-1/8NPT |
1/8 NPSF |
1/8 NPT |
Male Run Tee Brass Pipe Fittings 1/8NPSF Female - 1/8NPT Male |
DPMST 1/4NPSF-1/4NPT |
1/4 NPSF |
1/4 NPT |
Male Run Tee Brass Pipe Fittings 1/4NPSF Female - 1/4NPT Male |
DPMST 3/8NPSF-3/8NPT |
3/8 NPSF |
3/8 NPT |
Male Run Tee Brass Pipe Fittings 3/8NPSF Female - 3/8NPT Male |
DPMST 1/2NPSF-1/2NPT |
1/2 NPSF |
1/2 NPT |
Male Run Tee Brass Pipe Fittings 1/2NPSF Female - 1/2NPT Male |
DPMST 3/4NPSF-3/4NPT |
3/4 NPSF |
3/4 NPT |
Male Run Tee Brass Pipe Fittings 3/4NPSF Female - 3/4NPT Male |
|
BSPP Female Thread - BSPT Male Thread |
MODEL |
Female Thread |
Male Thread |
Description |
DPMST G1/8-R1/8 |
G1/8 |
R1/8 |
Male Run Tee Brass Pipe Fittings G1/8 Female - R1/8 Male |
DPMST G1/4-R1/4 |
G1/4 |
R1/4 |
Male Run Tee Brass Pipe Fittings G1/4 Female - R1/4 Male |
DPMST G3/8-R3/8 |
G3/8 |
R3/8 |
Male Run Tee Brass Pipe Fittings G3/8 Female - R3/8 Male |
DPMST G1/2-R1/2 |
G1/2 |
R1/2 |
Male Run Tee Brass Pipe Fittings G1/2 Female - R1/2 Male |
DPMST G 3/4-R3/4 |
G3/4 |
R3/4 |
Male Run Tee Brass Pipe Fittings G3/4 Female - R3/4 Male |
|
Metric Female Thread - NPT Male Thread |
MODEL |
Female Thread |
Male Thread |
Description |
DPMST M12-1/8NPT |
M12 |
1/8NPT |
Male Run Tee Brass Pipe Fittings M12 Female - 1/8NPT Male |
DPMST M16-1/4NPT |
M16 |
1/4NPT |
Male Run Tee Brass Pipe Fittings M16 Female - 1/4NPT Male |
DPMST M16-3/8NPT |
M16 |
3/8NPT |
Male Run Tee Brass Pipe Fittings M16 Female - 3/8NPT Male |
DPMST M16-1/2NPT |
M16 |
1/2NPT |
Male Run Tee Brass Pipe Fittings M16 Female - 1/2NPT Male |
DPMST M22-1/2NPT |
M22 |
1/2NPT |
Male Run Tee Brass Pipe Fittings M22 Female - 1/2NPT Male |
DPMST M22-1/2NPT |
M22 |
3/4NPT |
Male Run Tee Brass Pipe Fittings M22 Female - 3/4NPT Male |
|
|
|
|
|
|
|
|
|
|
