Stop Fittings, Pneumatic Fittings, Push in Fittings |
|
Application |
Features |
1. Used in the place where pneumatic tubing frequently changes. |
1. Easy to connect tube by one touch. |
2. Used at laboratory or for instructing pneumatic connection |
2. Air is completed blocked when the tubing is released and the air flows again only after connection to ensure safty. The air flows only when the tubing is connected. |
Construction |
3. Nickel-Plated brass body ensures anti-corrosion and anti-contamination. |
|
4. Fittings are equipped with a Gasket, O-ring and Teflon-treatment on the thread. |
|
Specification |
|
Fluid |
Air, Vaccum |
|
Pressure Range |
0~1.0 MPa |
0~150 PSI |
|
Negative Pressure |
-100 Kpa(-750Torr) |
-29.5 ln Hg |
|
Max Pressure |
1.5 Mpa |
250PSI |
|
Temperature Range |
0~60℃ |
32~140F |
|
Applicable Tube |
PU (Polyurethane) |
PA (Nylon) |
|

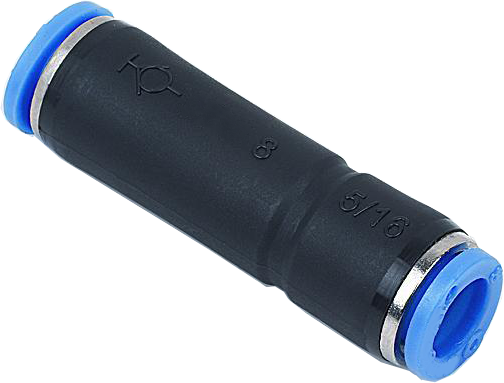

Stop Fittings (Pneumatic Fittings) - MODEL: PSPU |
|
TUBE - TUBE (UNION STRAIGHT) |
|
Metric Size |
MODEL |
Tube Size |
Description |
PSPU 04 |
4mm |
Union Straight 4mm |
PSPU 06 |
6mm |
Union Straight 6mm |
PSPU 08 |
8mm |
Union Straight 8mm |
PSPU 10 |
10mm |
Union Straight 10mm |
|
|
|
|
|
|
|
