| High Quality All Metal Push in Fitting are made in nickel Plated Brass Material ,The "C" Nickel Plated Brass Series fitting is our "Automatic Push in Fitting line with PT, Parallel & NPT Thread and Metric or Inch Tube Size,DIA.2mm - DIA.16mm & DIA. 1/8 - DIA. 1/2 , The sealant on thread available for the buyers' needs.The quick connections and disconnections with calibrated plastic hoses at any time by simple hand release. The Straight Male /Female Connector , 45 / 90 Deg Swivel Male/Female Elbow Fittings , Union Tee , Branch Tee ,Run Tee , Y Connector , Banjo Elbow Fittings, Speed Controller types available to meet customers' various demands. Push-In Straight 1/4" NPT x 3/8" Tube, Push-In T-Union 3/8, Union Connector Fitting: 3/8", Male Adapter Fitting 3/8", NPT - 1/4" Tube, Male Swivel Elbow Fitting 3/8" NPT - 1/4" Tube. |
 |
|
| Installation Instructions |
|
 |
| To connect tube (see figure 1) |
Features |
| 1. Cut tubing squarely–maximum of 15° angle allowable.Use of tube cutter (PTC) is recommended. |
1. Simply to install & uninstall with no tools. |
| 2. Thread sealant on taper threads, O-ring face seal on G threads. |
| 2. Check that port or mating part is clean and free of debris. |
3. Reuseable-Can be assembled and disassembled repeatedly. (recommend to cut the surface-damaged part of tube) |
| 3. Insert tube into fitting until it bottoms.Push twice to verify that tubing is inserted past collet & O-Ring. |
3. Nickel-Plated brass body ensures anti-corrosion and anti-contamination. |
| 4. Pull on tubing to verify it is fully inserted. |
| To disconnect tube (see figure 2) |
| 1. Simply press release button, hold against body, and pull tubing out of fitting. |
 |
|
4. NBR as the standard sealing material,viton sealing is available upon request. |
| 5. Thread: BSPP, BSPT, NPT (Please contact us for other styles) |
| 6.Note: These meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application. |
|
| Specification |
|
| Fluid |
Air, Vaccum |
|
| Pressure Range |
0~6.5 MPa |
0~950 PSI |
|
| Negative Pressure |
-100 Kpa(-750Torr) |
-29.5 ln Hg |
|
| Max Pressure |
10.0 Mpa |
1500 PSI |
|
| Temperature Range |
-20 ~ 80 ℃ (Use viton sealing: -20 ~ 250 ℃) |
-4 ~176F (Use viton sealing: -4 ~ 482 F) |
|
| Applicable Tube |
PU (Polyurethane) |
PA (Nylon) |
| |
|
|
|
| All Brass Push-In Fittngs (BSPT, BSPP, NPT Thread) - Camozzi Type |
 Catalogue |
|
 |
|
|
Brass Push In Air Fittings
Male Straight
|
Brass Push In Air Fittings
Male Straight (G Thread)
|
Brass Push In Air Fittings
Female Straight
|
Brass Push In Air Fittings
Female Straight (G Thread)
|
|
|
|
|
|
|
Brass Push To Connect Fittings
Male Elbow Swivel
|
Brass Push To Connect Fittings
Male Elbow Swivel (G thread)
|
Brass Push To Connect Fittings
Female Elbow Swivel
|
Brass Push To Connect Fittings
Female Elbow Swivel (G thread)
|
|
|
|
|
|
|
Brass Pneumatic Fittings
Male Banjo Elbow
|
Brass Pneumatic Fittings
Male Banjo Elbow (G Thread)
|
Brass Pneumatic Fittings
Male Branch Tee
|
Brass Pneumatic Fittings
Male Branch Tee (G Thread)
|
|
|
|
|
|
|
Brass Push In Fittings
Male Branch Tee
|
Brass Push In Fittings
Male Branch Tee (G thread)
|
Brass Push In Fittings
Speed Controller
|
Brass Push In Fittings
Speed Controller (G Thread)
|
|
|
|
|
|
|
Brass Push In Fittings
Union Straight
|
Brass Push In Fittings

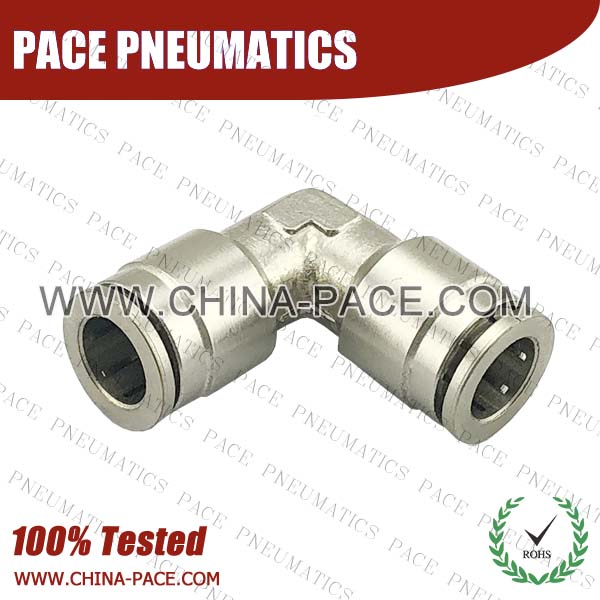

Union Elbow
|
Brass Push In Fittings
Fixed Reduction
|
Brass Push In Fittings
Union Tee
|
|
|
|
|
|
|
|
Brass Push In Fittings
Union Y
|
Brass Push In Fittings
Union Cross
|
Brass Push In Fittings
Union Bulkhead
|
Brass Push In Fittings
5-Way Connectors
|
|
|
|
|
|
|
Brass Push In Fittings
Female Bulkhead
|
Brass Push In Fittings
Reduction Straight
|
Brass Push In Fittings
Bulkhead Elbow
|
|
|
|
| |
| Teflon Washer Metal Push in Fittings - Camozzi Type |
Catalogue |
Teflon Washer with the most uprising characteristics as below:
A. Resistant to many chemicals, includes ozone, chlorine, acetic acid, ammonia, sulfuric acid and hydrochloric acid.
B. Weather and UV resistance
C. Non Stick::Very few solid substances will permanently adhere to a Teflon coating. While tacky materials may show some adhesion, almost all substances release easily.
D. Outstanding performance at extreme temperatures to meet your special temperatures 'demands: it can temporarily withstand temperatures of 260C and cryogenic temperatures of -240C and still with the same chemical properties. Its initial melting point of 342C (+- 10C) & second melting pint at 327C (+- 10C).
E:The Teflon Washer Series Fittings with Class-A O-ring.
Thread Connection : Range from BSPP 1/8" to 1/2"
Push-in Connection: Range from Inch Size 5/32" to 1/2" OD & Metric Size 04mm to 16MM
Configurations Includes: Straight , Elbow , Branch Tee ,Run Tee, Long Leg Male Elbow.
Recommended Tube Material and tube size tolerance requirements:
Polyurethane Tube: specified fitting size ± 0.004" max. (± 0.1 mm max.)
Nylon Tube:: specified fitting size ± 0.004" max. (± 0.1 mm max.)
|
|
|
|
|
|
|
|
|
|
|
|
