| An Economical and Lightweight Option for the Air Brake System |
| PTC & PTCR Fitting is a composite push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T truck and trailer applications, PACE PTC fittings reduce assembly time versus compression style fittings . |
|
| Performance: |
| Composite DOT-certified push-to-connect fittings are manufactured with a polymer body and brass screw threads and holding mechanisms. They utilize a collet to grip tubing, plus an elastomeric sealing mechanism to complete the tube end seal, allowing for a relatively foolproof assembly with no additional tools other than a tube cutter.Like their brass counterpart, Prestomatic (PMT), composite PTC fittings do not rust or corrode. The internal push-to-connect sealing mechanism affords a strong and dependable seal robust enough to meet all DOT parameters and to withstand high and low-temperature extremes. |
| Applications: |
| Air Brakes , Air Tanks , Air Ride, Sliders, Tire Inflation, Primary & Secondary, Air Lines, Cab Controls |
|
| Technical data: |
|
Pressure Range Up to 250 PSI (17.2 bar)
Temperature Range -40 to +200 F (-40 to +93.3 C)
Compatible Tubing: SAE J844 Type A & B nylon tubing |
|
.jpg) |
 |
| Tube Push In |
Tube release |
|
| Product Features: |
| Body Material: Plastic |
| Collet Material: Brass |
| Hex & Thread Material: Brass |
| Seal Oring Material: Viton Sealing ( Also can be used with Buna N O-ring ) |
| Tube Support Material: Brass |
| Compliance: Meets D.O.T. FMVSS571.106, SAE J2494-3 |
| Advantage: Composite Body – Strong, Lightweight, Compact |
|
|
| Thread Standards: |
| NPT Thread: |
1/8, 1/4, 3/8, 1/2 |
| BSPT (R) Thread: |
1/8, 1/4, 3/8, 1/2 |
| BSPP (G) Thread: |
1/8, 1/4, 3/8, 1/2 |
| Metric Thread: |
M10x1.0, M12x1.5, M14x1.5, M16x1.5, M22x1.5 |
|
| Recommended tubing for use with Push-in DOT: |
| Tube (OD) available |
Inch Tube (SAE J844), Metric Tube (DIN 74324) |
| Inch Tube Size (SAE J844): |
1/4, 3/8, 1/2, 5/8, 3/4 |
| Metric Tube Size (DIN 74324): |
6mm, 8mm, 10mm, 12mm,16mm |
|
|
|
|
| How to order Composite D.O.T. Push To Connect Air Brake Fittings |
|
|
|
|
Composite DOT Push In Fittings
Male Adapter
|
Composite DOT Push In Fittings
90 ° Male Elbow
|
Composite DOT Push In Fittings
90 ° Female Elbow
|
Composite DOT Push In Fittings
45 ° Male Elbow
|
|
|
|
|
|
Composite DOT Push In Fittings
Male Branch Tee
|
Composite DOT Push In Fittings
Female Branch Tee
|
Composite DOT Push In Fittings
Male Run Tee
|
Composite DOT Push In Fittings
Male Y
|
|
|
|
|
|
Composite DOT Push In Fittings
Union Straight
|
Composite DOT Push In Fittings
Union Elbow
|
Composite DOT Push In Fittings
Union Tee
|
Composite DOT Push In Fittings
Union Y
|
|
|
|
|
|
|
Composite DOT Push In Fittings
Reducer Straight
|
Composite DOT Push In Fittings
Reducer Tee
|
Composite DOT Push In Fittings

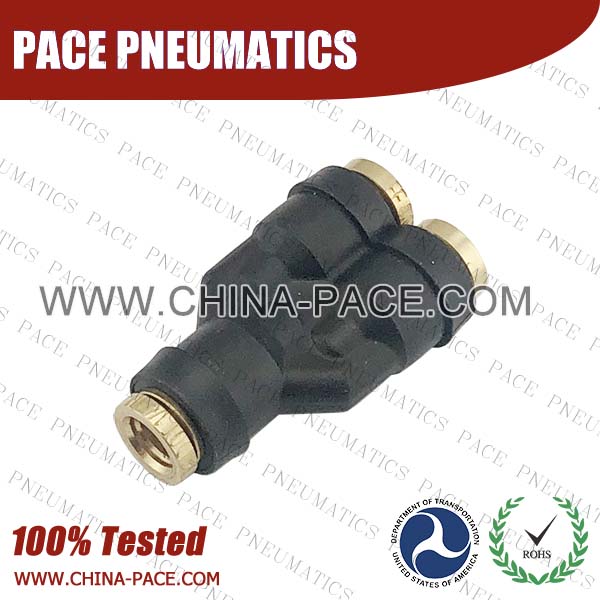

Reducer Y
|
Composite DOT Push In Fittings
Push In Plug Elbow
|
|
| |
|
|
|
|
Composite DOT Push In Fittings
Male Branch Tee Push In Plug
|
Composite DOT Push In Fittings
Male Run Tee Push In Plug
|
|
|
|
| |
|
|
| |
|
Attention: PACE PNEUMATICS accept Custom Made for DOT Fittings any sizes and types |
|
