Typical Application: Air Brake Systems
Pressure: Maximum operating pressure of 150 psi.
Vibration: Fair resistance.
Temperature Range: -65°F to +250°F (-53°C to +121°C) with copper tubing.
Material: CA360 Brass.
Used With: Copper tubing in air brake systems.
Advantages: Easy to assemble (no flaring).
May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Conformance: Meets specifications and standards of SAE and DOT.
Assembly Instructions
|
|
|
| Thread available : |
NPT, UNF, BSPT (R) , BSPP (G), Metric Thread |
| NPT & UNF Thread: |
10-32 UNF, 1/16, 1/8, 1/4, 3/8, 1/2, 3/4 |
| BSPT (R) Thread: |
1/8, 1/4, 3/8, 1/2, 3/4 |
| BSPP (G) Thread: |
1/8, 1/4, 3/8, 1/2, 3/4 |
| Metric Thread: |
M10x1.0, M12x1.5, M14x1.5, M16x1.5, M22x1.5 |
| Tube (OD) available |
Inch Tube (SAE J844), Metric Tube (DIN 74324) |
| Inch Tube Size (SAE J844): |
1/8, 3/16, 5/32, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4 |
| Metric Tube Size (DIN 74324): |
4mm, 6mm, 8mm, 10mm, 12mm, 15mm, 16mm |
|
|
| |
| DOT Air Brake Fittings For Copper Tubing (Parker AB Fittings) |
 Catalogue |
|
|
|
 |
DOT Air Brake Fittings For Copper Tubing
Male Straight
|
DOT Air Brake Fittings For Copper Tubing
Male Elbow
|
DOT Air Brake Fittings For Copper Tubing
45 Degree Male Elbow
|
DOT Air Brake Fittings For Copper Tubing
Female Elbow
|
|
|
 |
|
|
DOT Air Brake Fittings For Copper Tubing
Male Branch Tee
|
DOT Air Brake Fittings For Copper Tubing
Male Run Tee
|
DOT Air Brake Fittings For Copper Tubing
Union Straight
|
DOT Air Brake Fittings For Copper Tubing
Union Tee
|
|
|
 |
|
|
DOT Air Brake Fittings For Copper Tubing
Union Elbow
|
DOT Air Brake Fittings For Copper Tubing

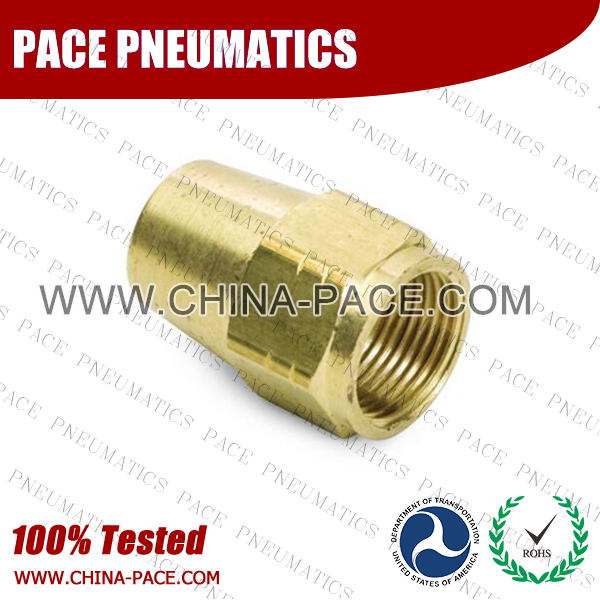

Nut
|
DOT Air Brake Fittings For Copper Tubing
Sleeve
|
|
|
| |
|
PACE NTA Series DOT Air Brake Compression Fittings meet SAE J246, SAE J1131 and D.O.T. FMVSS571.106 specifications.
PACE fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel. Use with the following
SAE J844 tubing• 1120 Nylon Air Brake Tubing • 1320 Quantum Elastomeric Air Brake Tubing Markets: • Heavy duty truck • Trailer • Mobile Features/Benefits: • D.O.T. compression style fittings for repairing truck and trailer air brake lines • For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements • Ribbed sleeve for compression and positive grip • Stainless Steel tube support • Meets D.O.T. FMVSS 571.106, SAE J246 and SAE J1131 • Electroless nickel plated bodies can be used with bio-diesel • All brass air brake fitting • Use with J844 type A & B nylon tubing in air brake systems • Pre-applied thread sealant Applications: • Air brakes • Air tanks • Air ride • Sliders • Tire inflation • Primary & secondary air lines • Cab controls Custom configurations and sizes are available upon request. |
|
|
|
|
|
