| Application |
| LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic and pneumatic systems. Used on low, medium and high pressure lines under the most adverse conditions, compatible with copper, brass, aluminum and steel hydraulic tubing that can be flared. |
| Features |
|
- Construction - Two piece body and nut, straight barstock & forged fittings.
- Good Vibration resistance - use long nut when greater vibration resistance is required.
- Conformance - Heavy duty flare fittings are manufactured to SAE specifications, Meets specifications and standards of ASA, ASME, SAE, and MS (Military standards).
- Reusability - Can be assembled and re-assembled repeatedly & Resists mechanical pull
|
| Specification |
- Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
- Working Pressure: up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundy-weld (double flared) and 3500 psi with copper tubing, depending on size. Obviously, Temperature and type of tubing used are important factors.
|
| Installation Instructions |
 |
- Cut tubing to desired lenght. Make sure all burrs are removed and ends are cut square.
- Slide nut on tube. Threaded and “A” of nut must face out.
- Flare end of tube with a 45° flaring tool. a-Measure flare diameter b-Examine flare for excessive thin out.
- Lubricat threads and assemble to fitting body. Nut should be turned hand out.
- Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
|
|
| SAE 45 Degree Flare Fittings - Brass Material |
 Catalogue |
|
|
|
|
SAE 45° Flare Fittings
Short Rod Nut
|
SAE 45° Flare Fittings
Long Rod Nut
|
SAE 45° Flare Fittings
Short Forged Nut
|
SAE 45° Flare Fittings
Long Forged Nut
|
|
|
|
|
|
SAE 45° Flare Fittings
Flared Plug
|
SAE 45° Flare Fittings
Male Adapter
|
SAE 45° Flare Fittings
Female Adapter
|
SAE 45° Flare Fittings
Female Flare Adapter
|
|
|
|
|
|
SAE 45° Flare Fittings
Flare Reducer
|
SAE 45° Flare Fittings
Forged 90° Male Elbow
|
SAE 45° Flare Fittings
Barstock 90° Male Elbow
|
SAE 45° Flare Fittings
Forged 45° Male Elbow
|
|
|
|
|
|
|
|
SAE 45° Flare Fittings

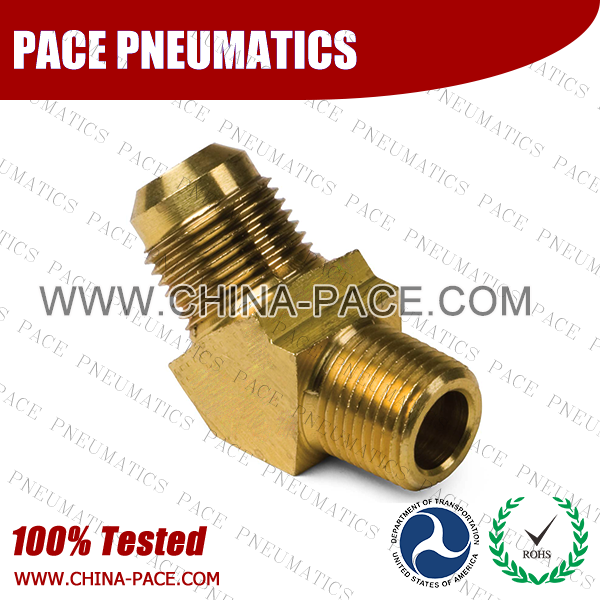

Barstock 45° Male Elbow
|
SAE 45° Flare Fittings
Forged 90° Female Elbow
|
SAE 45° Flare Fittings
Barstock 90° Male Elbow
|
SAE 45° Flare Fittings
90° Swivel Female Elbow
|
|
|
|
|
|
|
SAE 45° Flare Fittings
Forged Male Branch Tee
|
SAE 45° Flare Fittings
Barstock Male Branch Tee
|
SAE 45° Flare Fittings
Forged Male Run Tee
|
SAE 45° Flare Fittings
Barstock Male Run Tee
|
|
|
|
|
|
|
SAE 45° Flare Fittings
Forged 90° Flare Elbow
|
SAE 45° Flare Fittings
Barstock 90° Flare Elbow
|
SAE 45° Flare Fittings
Forged Flare Tee
|
SAE 45° Flare Fittings
Barstock Flare Tee
|
|
|
|
|
|
|
SAE 45° Flare Fittings
Forged Swivel
|
SAE 45° Flare Fittings

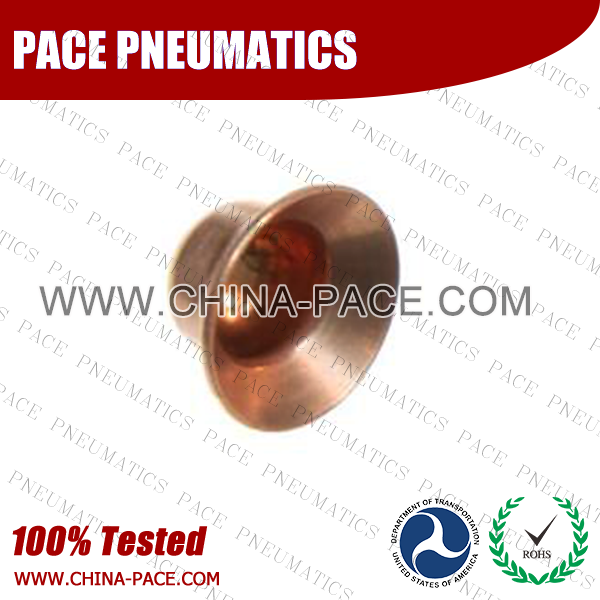

Copper Bonnet
|
SAE 45° Flare Fittings
Copper Gasket
|
|
|
|
Accpet: Custom Made for Any other Sizes and Types |
|
|
|
