Application |
Assembly |
Low Pressure Air, Fuel, Lube, and Oil Lines, Pressure determined by tube material and hardness. |
1- Lubricate insert. |
Advantages: Easy assembly. No clamps needed!! |
2- Hold hose at angle as shown & push on and up over first barb. |
Specification |
3. Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand. |
1.Air (inside + outside) up to max. + 70° C |
Disassemble |
2. Oil-enriched compressor air |
1. Cut the hose longitudinally along a line at a slight angle from the centre line of the hose. (Be careful not to nick barbs when cutting hose) |
3. Water (inside + outside) up to max. + 82° C |
2. Disengage the fitting from the hose. |
4. Coolants,Antifreeze,Lubricant oil,Fluids with a mineral oil base |
|
|
|
|
Push-On Hose Barb Fittings - - Brass Material |

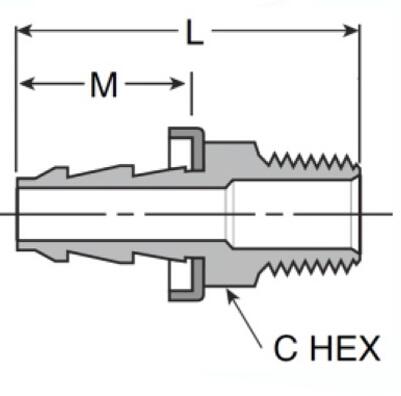

Male Adapter Push On Hose Barb Fittings |
|
|
|
Inch Hose Size - Thread Size |
MODEL |
Hose Size |
Thread Size |
Description |
PHTMO 1/4-1/8NPT |
1/4 |
1/8 NPT |
Push On Hose Barb Fittings Male Adapter 1/4 1/8NPT |
PHTMO 1/4-1/4NPT |
1/4 |
1/4 NPT |
Push On Hose Barb Fittings Male Adapter 1/4 1/4NPT |
PHTMO 1/4-3/8NPT |
1/4 |
3/8 NPT |
Push On Hose Barb Fittings Male Adapter 1/4 3/8NPT |
PHTMO 5/16-1/8NPT |
5/16 |
1/8 NPT |
Push On Hose Barb Fittings Male Adapter 5/16 1/8NPT |
PHTMO 5/16-1/4NPT |
5/16 |
1/4 NPT |
Push On Hose Barb Fittings Male Adapter 5/16 1/4NPT |
PHTMO 3/8-1/8NPT |
3/8 |
1/8 NPT |
Push On Hose Barb Fittings Male Adapter 1/4 1/8NPT |
PHTMO 3/8-1/4NPT |
3/8 |
1/4 NPT |
Push On Hose Barb Fittings Male Adapter 3/8 1/4NPT |
PHTMO 3/8-3/8NPT |
3/8 |
3/8 NPT |
Push On Hose Barb Fittings Male Adapter 3/8 3/8NPT |
PHTMO 3/8-1/2NPT |
3/8 |
1/2 NPT |
Push On Hose Barb Fittings Male Adapter 1/2 1/2NPT |
PHTMO 3/8-3/4NPT |
3/8 |
3/4 NPT |
Push On Hose Barb Fittings Male Adapter 1/2 3/4NPT |
PHTMO 1/2-1/4NPT |
1/2 |
1/4 NPT |
Push On Hose Barb Fittings Male Adapter 1/2 1/4NPT |
PHTMO 1/2-3/8NPT |
1/2 |
3/8 NPT |
Push On Hose Barb Fittings Male Adapter 1/2 3/8NPT |
PHTMO 1/2-1/2NPT |
1/2 |
1/2 NPT |
Push On Hose Barb Fittings Male Adapter 1/2 1/2NPT |
PHTMO 1/2-3/4NPT |
1/2 |
3/4 NPT |
Push On Hose Barb Fittings Male Adapter 1/2 3/4NPT |
PHTMO 5/8-3/8NPT |
5/8 |
3/8 NPT |
Push On Hose Barb Fittings Male Adapter 5/8 3/8NPT |
PHTMO 5/8-1/2NPT |
5/8 |
1/2 NPT |
Push On Hose Barb Fittings Male Adapter 5/8 1/2NPT |
PHTMO 5/8-3/4NPT |
5/8 |
3/4 NPT |
Push On Hose Barb Fittings Male Adapter 5/8 3/4NPT |
PHTMO 3/4-1/2NPT |
3/4 |
1/2 NPT |
Push On Hose Barb Fittings Male Adapter 3/4 1/2NPT |
PHTMO 3/4-3/4NPT |
3/4 |
3/4 NPT |
Push On Hose Barb Fittings Male Adapter 3/4 3/4NPT |
PHTMO 1-3/4NPT |
1 |
3/4 NPT |
Push On Hose Barb Fittings Male Adapter 1 3/4NPT |
PHTMO 1-1NPT |
1 |
1 NPT |
Push On Hose Barb Fittings Male Adapter 1 1NPT |
|
|
|
Accpet: Custom Made For Any other Sizes and Types |
|
|
|
